midiBeam v2 Wireless

Professional wireless MIDI interface

midiBeam v2 wireless

Wireless MIDI Interface

The midiBeam wireless MIDI interface connects your MIDI instrument (or any source) to your synthesizer or computer through radio waves, without any cable connection.

Two key applications with clear advantages:

  • If you have a battery powered mobile MIDI instrument you will be free to move around the stage without any cable if you use midiBeam. You can use a mobile keyboard hanging in your neck from Roland, Casio, etc., or a wind controller, like the AKAI EWI 4000s or the Yamaha WX5.
  • If you are fed up with the many cables hanging around in your studio, you can reduce the number of cables if you use midiBeam. Unlike other wireless MIDI solutions midiBeam is a very cost efficient replacement for a MIDI cable, while the delay latency is perfectly negligible, just about 10% of other wireless solutions.
midiBeam v2 wireless transmitter

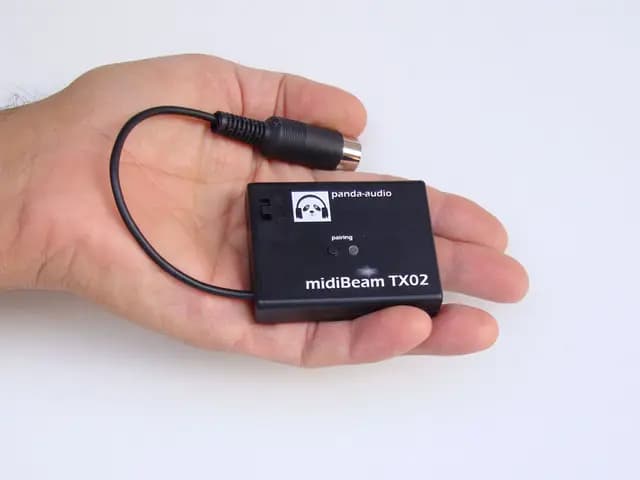

The transmitter

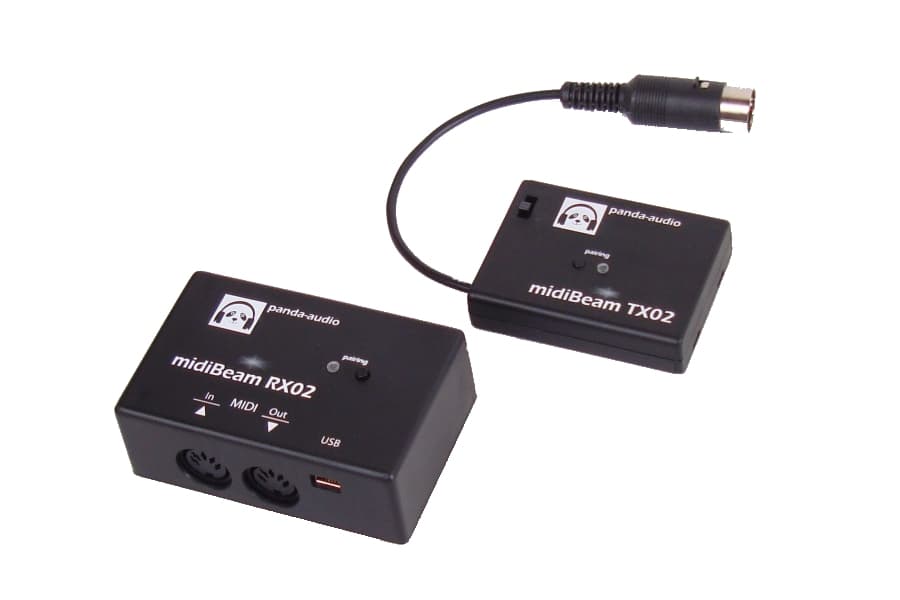

The midiBeam system consists of two boxes, TX02 and RX02.

Attached to the instrument is the TX02 transmitter, powered by two AAA batteries. It is a small plastic box, with an LED and one pushbutton on the top for "PAIRING". The MIDI plug is hanging on one end of a short cable. The TX02 can be attached to the instrument by Velcro tape.

midiBeam v2 wireless receiver

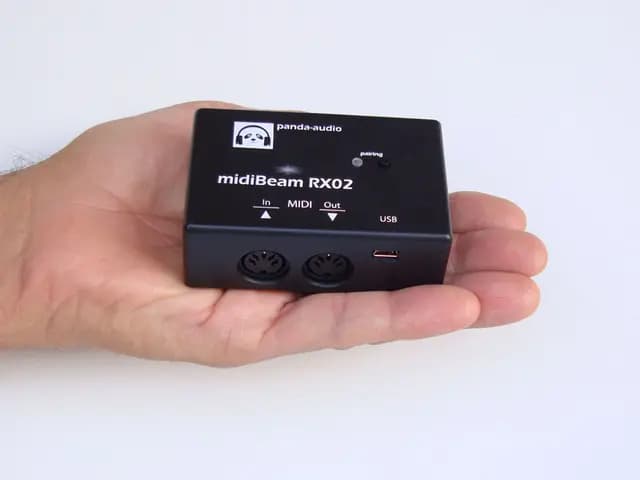

The receiver

The RX02 receiver is powered through the mini USB socket either from a computer or from a USB power supply. It has an LED and a "PAIRING" pushbutton as well. The MIDI output is provided either through USB or the DIN MIDI Output socket. There is a DIN MIDI Input socket as well; if the device has no radio connection then it functions as a standard MIDI Interface to a computer. No special driver installation is necessary.

Radio connection is established between a pair of devices automatically on one of 76 radio channels by using the pairing buttons on both units. This means that up to 76 systems can coexist at one location. The radio transmission is using the 2.4 GHz band that is free for public use all over the world. Radio power is programmable in four increments. The transmitter can power off automatically, if it is not used for a certain time. Programmable options are 10, 30, 60 minutes or no power off.


Product support

Firmware updates, user manuals, presets, and other useful downloads and links

Effortless Updates & Configuration

Our web-based tool seamlessly upgrades your midiBeam v2 Wireless to the latest version (2.0) and manages all operational settings.

Click here to launch the application. (Supported browsers: Chrome on macOS/Windows).

Downloads

midiBeam v2 Wireless system software update - v2.30

midiBeam v2 Wireless system software update - v2.00

midiBeam v2 Wireless administration tool - Windows

Quick start guide

User guide - v2.00

midiBeam v2 Wireless MIDI System Exclusive specification
